15KW Sauna Steam Generator

Model No: GS08
Power output: 9KW
The steam generator kit including computer panel and steam generator.
Features: Light, steam and fan(option).

Quantity:
  • GS08-15KW
  • GTSHOWER
  • GS08-15KW
  • 15KW
  • 380V/50Hz, three phase
  • Touch Screen
  • Metal
  • Low Pressure
  • Electric Heated Tube
  • Internal

15KW Sauna Steam Generator

Power Output  3KW  4.5KW  6KW  9KW  12KW 15KW  18KW
Rated Voltage 220V
one phase
 220V
one phase
 220V
one phase
 380V
three phase
 380V
three phase
 380V
three phase
 380V
three phase
Potency Error  ± 10%  ±10%  ±10%  ±10%  ±10%  ±10%  ±10%
Duration  >1500V  >1500V  >1500V  >1500V  >1500V  >1500V  >1500V
Resistance  >20MΩ >20MΩ   >20MΩ  >20MΩ  >20MΩ  >20MΩ  >20MΩ
Ceiling Light  36V/40W  36V/40W  36V/40W  36V/40W  36V/40W  36V/40W  36V/40W
Temperature Range  25-68ºC  25-68ºC  25-68ºC  25-68ºC  25-68ºC  25-68ºC  25-68ºC
Time Range  1-99 Min  1-99 Min  1-99 Min  1-99 Min  1-99 Min  1-99 Min  1-99 Min
Pressure  ---  ---  ---  0.14MPa  0.16Mpa  0.18MPa  0.18MPa
Velocity  ---  ---  ---  260ml/min  360ml/min  ---  ---
Production Time  ---  ---  ---  60-100S  80-180S  ---  ---
Water Tank Volume  ---  ---  5.7L  5.7L  10.2L  10.2L  10.2L
Working Space  2~4 CBM  4~6 CBM  5~8 CBM  8~12 CBM  12~15 CBM  15~20 CBM  20~24 CBM

 Product Show

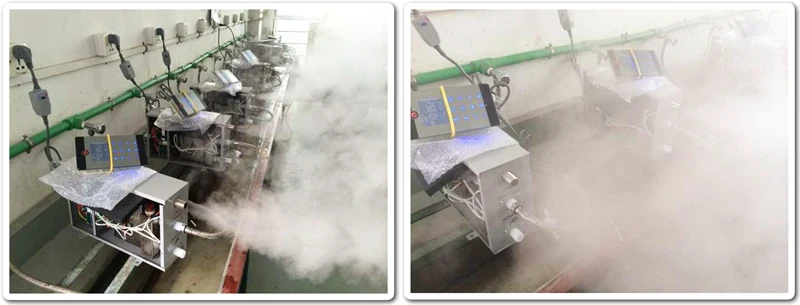

 Our Factory
详情图_07_副本


详情图_09_副本
